Lift, rotate and pour a heavy drum with your hoist or crane
Morse engineers have designed these below-hook lifting devices with motor driven drum tilt for below hook applications. More than just a 55-gallon drum dumper (208 liter drum dumper), you have full 360 degree control of the powered drum rotation to dispense with this industrial lifting equipment.
Power Tilt Kontrol-Karriers
- Motorized drum rotation 3600 in both directions
- AC Power Tilt models have 2-button pendant on 7 foot cord (2.1 m cord)
- Air Power Tilt models have 3 position control valve on 12 foot (3.6 m) coiled hose
- Available with single phase AC motor, 3-phase AC motor, or air motor
- Designed for 22.5" (57 cm) diameter 55-gallon steel drum (208 liter steel drum). See options below for other drum types and sizes.
- Capacity
- 1500 Lb. (680 kg) Full drum
- 800 Lb. (227 kg) Half-full drum
- Includes flexible chain cover to help protect the sidewall of your drum.
- Order the correct size Diameter Adaptor for each smaller drum.
Ship dimensions: L51" W27" H45" (130 x 69 x 114 cm)
Powered Drum Handler
Power Tilt Kontrol-Karriers
Below-hook drum carrier

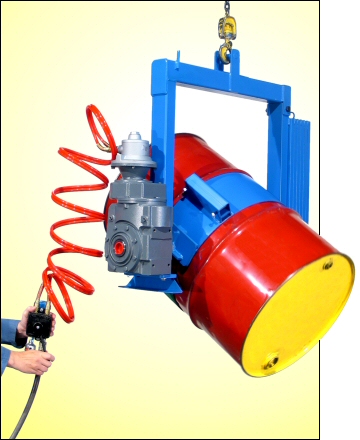

- Model 195A-A

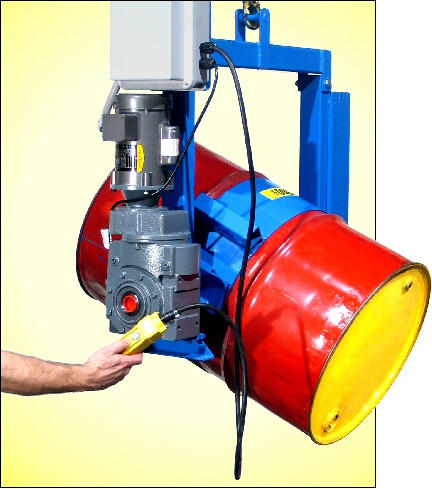

Model 195A-1-115
Electric Power Tilt Kontrol-Karrier
More than just a drum inverter or drum dumper...
...drum carriers for controlled drum dispensing
Lift, rotate and control the pour of your
drum with Morse drum carriers.
Every Morse Below-Hook Drum handler is load tested at the factory as per American National Standard ASME B30.20 and a load test certificate is enclosed with each unit.
Use these below the hook drum carriers with your hoist or crane to control the pour of drum contents, rather than simply dump the entire contents with a drum inverter.
- Use the menu on the right to select the right Morse Kontrol-Karrier to lift and pour your drum(s)
- Power-Tilt Kontrol-Karriers add ergonomic power-tilt to below the hook drum tilters
- Drum Karriers for pouring within operator reach
- Tilt drum 360 in either direction. Lift and invert drum with drum faucet in place.
Drum carrier manual tilt-control options
- Standard drum tilt control is pull chain and chain wheel (shown above left)
- Available with optional hand crank drum tilt control
- Also available with 16" hand wheel drum tilt control
Below-hook drum carriers
Lift, move and pour a drum below-hook
with your hoist or crane

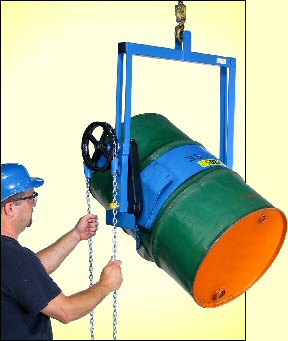

Model 185A below-the-hook
drum pourer
| Product # | Below-Hook Kontrol-Karriers to Lift and Pour Drum Overhead | Group # | Weight | Class | Ship By | Sale Price |
|---|---|---|---|---|---|---|
| 195A-1-115 | KONTROL-KARRIER, POWER TILT, 1500 Lb . CAPACITY, 1-PHASE 115V MOTOR | 30 | 467 | 77.5 | T | $4,940.00 |
| 195A-3-230 | KONTROL-KARRIER, POWER TILT, 1500 Lb . CAPACITY, 3-PHASE 230V MOTOR | 30 | 467 | 77.5 | T | $4,940.00 |
| 195A-3-460 | KONTROL-KARRIER, POWER TILT, 1500 Lb . CAPACITY, 3-PHASE 460V MOTOR | 30 | 467 | 77.5 | T | $4,940.00 |
| 195A-A | KONTROL-KARRIER, POWER TILT, 1500 Lb . CAPACITY, AIR MOTOR | 30 | 453 | 77.5 | T | $4,512.50 |
| 195AM-A | KONTROL-KARRIER, POWER TILT, 1500 Lb . CAPACITY, SPARK RESISTANT PARTS, AIR MOTOR | 30 | 460 | 77.5 | T | Call |
| 185A | KONTROL-KARRIER, 55-GALLON, 800 Lb. CAPACITY | 30 | 86 | 77.5 | T | $565.25 |
| 185A-HD | KONTROL-KARRIER, 55-GALLON, 1500 Lb. CAPACITY | 30 | 109 | 77.5 | T | $731.50 |
| 185A-HDPS | ** SUPERSEDED BY MODEL 185A-HD + OPTION 4556-P | $0.00 | ||||
| 185A-HDSS | KONTROL-KARRIER, TYPE 304 STAINLESS STEEL, 55-GALLON, 1500 Lb. CAPACITY | 30 | 109 | 77.5 | T | $2,327.50 |
| 185A-GR | KONTROL-KARRIER, 55-GALLON, 2000 Lb. CAPACITY | 30 | 177 | 77.5 | T | $1,577.00 |
| 185XGR | KONTROL-KARRIER, 55-GALLON STEEL DRUM, 2500 Lb. CAPACITY | 31 | 300 | 77.5 | T | $2,660.00 |
| 185AM | KONTROL-KARRIER, 55-GALLON, 800 Lb. CAPACITY, SPARK RESISTANT PARTS | 30 | 102 | 77.5 | T | Call |
| 185AM-HD | KONTROL-KARRIER, 55-GALLON, 1500 Lb. CAPACITY, SPARK RESISTANT PARTS | 30 | 109 | 77.5 | T | Call |
| 185G | KONTROL-KARRIER, 3-PIECE DRUM HOLDER, 55-GALLON STEEL DRUM, 800 Lb. CAPACITY | 30 | 85 | 77.5 | T | $802.75 |
| 185G-HD | KONTROL-KARRIER, 3-PIECE DRUM HOLDER 55-GALLON STEEL DRUM, 1500 Lb. CAPACITY | 30 | 103 | 77.5 | T | $926.25 |
| 185G-GR | KONTROL-KARRIER, 3-PIECE DRUM HOLDER, 55-GALLON STEEL DRUM, 2000 Lb. CAPACITY | 30 | 197 | 77.5 | T | $1,909.50 |
| 185GM-GR | KONTROL-KARRIER, 3-PIECE DRUM HOLDER, 55-GALLON STEEL DRUM, 2000 Lb. CAPACITY, SPARK RESISTANT PARTS | 30 | 197 | 77.5 | T | Call |
| 185R | KONTROL-KARRIER, TOP RIM CLAMP, 800 Lb. CAPACITY | 30 | 203 | 77.5 | T | $831.25 |
| 184 | ADJUSTO-KARRIER, 8"-15" DIAMETER, 500 Lb. CAPACITY | 30 | 120 | 77.5 | T | $1,092.50 |
| 186 | ADJUSTO-KARRIER, 15"-23" DIAMETER, 500 Lb. CAPACITY | 30 | 121 | 77.5 | T | $1,073.50 |
Every Morse Below-Hook Drum handler is load tested at the factory as per American National Standard ASME B30.20 and a load test certificate is enclosed with each unit.
