End Over End Drum Rotators, End Over End Drum Tumblers, Morse End Over End Drum Rotator, Morse Drum Rotator, Morse Drum Tumbler, 1-300-1-115

Product #	End-Over-End Drum Tumblers	Group #	Weight	Class	Ship By	Sale Price
1-300-3-230	END-OVER-END DRUM ROTATOR, 13 RPM, 3-PHASE 230V TEFC MOTOR (INCLUDES 41 DRUM LIFTING HOOK)	51	514	70	T	$3,814.25
1-300-A	END-OVER-END DRUM ROTATOR, 13 RPM, AIR MOTOR (INCLUDES MODEL 41M SPARK RESISTANT DRUM LIFTING HOOK)	51	550	70	T	$3,700.25
1-300-E3-230	END-OVER-END DRUM ROTATOR, 13 RPM, EXPLOSION-PROOF 3-PHASE 230V MOTOR (INCLUDES 41M DRUM LIFTING HOOK)	51	647	70	T	$6,179.75

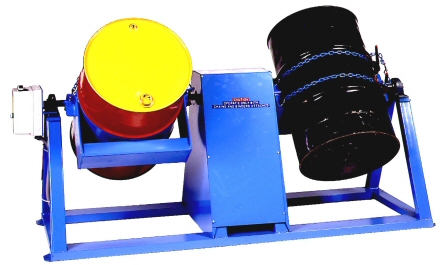

2-300-3-230	DOUBLE END-OVER-END ROTATOR, 13 RPM, 3-PHASE 230V MOTOR, (INCLUDES 41 DRUM LIFTING HOOK)	51	650	70	T	$5,291.50
2-300-A	DOUBLE END-OVER-END ROTATOR, 13 RPM, AIR MOTOR, (INCLUDES 41M DRUM LIFTING HOOK)	51	650	70	T	$5,244.00
2-300-E3-230	DOUBLE END-OVER-END ROTATOR, 13 RPM, EXPLOSION-PROOF 3-PHASE 230V MOTOR, (INCLUDES 41M DRUM LIFTING HOOK)	51	800	70	T	$7,666.50
GEK-1-300-1-115	KIT, ENCLOSURE W/ SAFETY INTERLOCK, FOR MODEL 1-300-1-115	51	375	70	T	$2,555.50
GEK-1-300-A	KIT, ENCLOSURE W/ SAFETY INTERLOCK, FOR MODEL 1-300-A	51	375	70	T	$2,778.75
GEK-1-300-E1-115	KIT, ENCLOSURE W/ SAFETY INTERLOCK, FOR MODEL 1-300-E1-115	51	375	70	T	$2,883.25

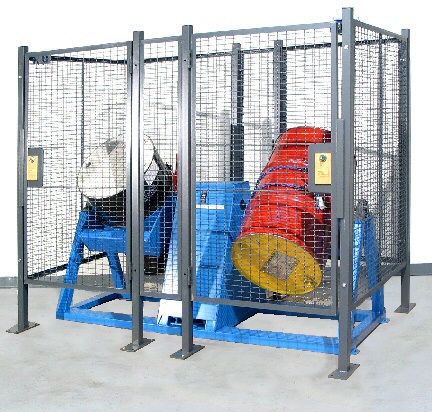

GEK-2-300-1-115	KIT, ENCLOSURE W/ SAFETY INTERLOCK, FOR MODEL 2-300-1-115	51	500	70	T	$3,529.25
GEK-2-300-A	KIT, ENCLOSURE W/ SAFETY INTERLOCK, FOR MODEL 2-300-A	51	500	70	T	$3,686.00
GEK-2-300-E1-115	KIT, ENCLOSURE W/ SAFETY INTERLOCK, FOR MODEL 2-300-E1-115	51	500	70	T	$4,279.75
300LC	LOAD CRANE, 300, RIGHT WELDED, FACTORY INSTALLED	51	82	70	T	$912.00
300LCF	LOAD CRANE, 300, RIGHT BOLTED, FIELD INSTALLED	51	155	70	T	$912.00
300LCFL	LOAD CRANE, 2-300, LEFT BOLTED, FIELD INSTALLED	51	155	70	T	$912.00
300LCL	LOAD CRANE, 2-300, LEFT WELDED, FACTORY INSTALLED	51	82	70	T	$912.00

Drum Tumblers - Drum Rotators

Use Morse End-Over-End Drum Rotators tumble a drum to mix and blend the contents. Turning drum End-Over-End with a drum tumbler provides a more aggressive mixing action.

Morse End-Over-End Drum Tumblers turn your sealed 55-gallon (208 liter) steel drum end-over end to mix separated ingredients back into suspension right inside.

1-300-1-115 Single End Over End Drum Tumbler, Single End Over End Drum Rotator

Drum Tumblers Save Time, Labor and Money!

Drum tumbling provides thorough mixing action to:

Blend valuable ingredients back into suspension

Leave less residue in drum to reduce waste and ease drum cleaning

Eliminate transfer and reduce clean-up

Load drum with your hoist or crane, or with optional Load Crane, and the model 41 or 41M Drum Lifting Hook included with each End-Over-End Drum Tumbler.

Drum Tumbler Features:

Drum rotation:

13 RPM on fixed speed models

3 to 20 RPM on variable speed models

Handle: 55-gallon steel (208 liter) drum with 22.5"

(57 cm) diameter, and maximum of 36" (91 cm) tall

Capacity:

800 Lb. (363 kg) (363 kg) full drum

400 Lb. (182 kg) Half-full drum *

Shipped with model 41 or 41M Drum Lifting Hook to assist in placing drum into holder with your crane or hoist

Standard motors are 230V, 3-Phase, 60 Hz (50 Hz also available)

Standard electric control includes start, stop and jog functions

Other motor voltages, explosion proof, and air motors are available

Sturdy frame built to resist stress and shock of tumbling load

Drum Tumbler Applications

Mix dry powders, wet grains, dyes, fine and coarse granules, settled liquids and powders with these drum tumblers

Ideal for mixing or agitating highly viscous substances inside closed drum

Note: End-Over-End Drum Tumblers are designed for a 55-gallon steel drum. To rotate fiber or plastic drum end-over-end, order custom End-Over-End Drum Rotator with Tilt-To-Load style drum holder or order Tilt-To-Load Drum Rotator.
