Morse Hydra-Lift Drum Rotators/Drum Rollers

Morse Hydra-Lift Drum Rotators lift and roll your closed drum to mix and blend the contents.

The built-in hydraulic system lifts your drum from floor level and places it quickly and easily

for rotation on the drum turner. Popular models include 456-1-115, 456-E1-115 Explosion Proof, and 456-A Air Motor.

Morse Hydra Lift Drum Rotator, Morse Hydra Lift Drum Roller, Morse 456

Model 456-3-230 Hydra-Lift Drum Roller

Drum Rotators Save Time, Labor and Money!

Morse developed the basic concept to provide "hands-off" drum handling and mixing. Enjoy the benefits of easy, ergonomic loading and unloading and eliminate many hazards of manual drum handling.

Benefits of mixing inside closed shipping drums

* Roll drum to remix settled ingredients

* Eliminate transfer, clean-up, and special vessels

* Use separate drum for each batch

* No container to purge between batches

* Nothing to insert into drum to mix

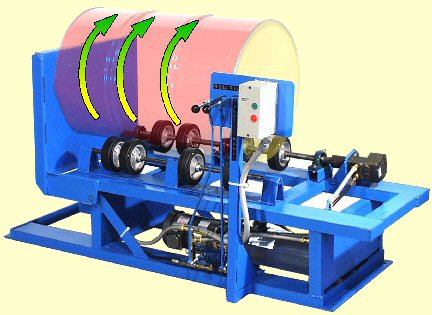

Hydra-Lift Drum Rollers accept a steel drum in upright position. You control the hydraulic tilt to lift an upright drum and place it down on drum rotator wheels. Start and stop drum rotation with a second control. Roll a drum at 5 to 20 RPM until contents are mixed as desired. Then return the drum to vertical to unload.

Drum Rotator Capacity:

* 1,000 Lb. (455 kg) Liquid load

* 400 Lb. (182 kg) Dry load. A shifting dry load exerts greater stress on the drum rotator than the fluid motion of a liquid load.

* Roll steel drum: 6" to 26" (15 to 66 cm) diameter, maximum 40" (102 cm) length

Overall dimensions: 67" (170 cm) long x 37" (94 cm) wide. See: Dimensional Information.

Available with choice of electric motors. Explosion proof motors available (see chart below).

Available with air motor as model 456-A.

Easy to Load by Hand Truck or Hoist

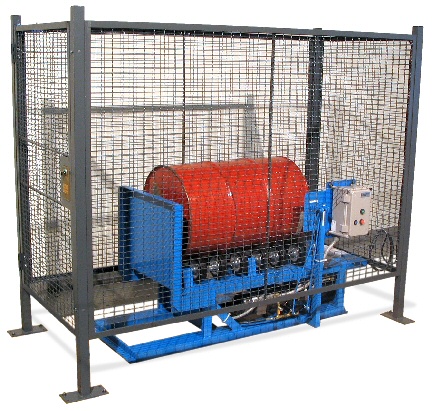

Enclosures for Morse Hydra-Lift Drum Rollers

Enclosure outside post-to-post dimensions: 88"L X 40"W X 74"H (224 x 102 x 188 cm)

Note: OSHA Requirement for enclosure with safety interlock Install all Morse Rotators in accordance with OSHA requirements for enclosure and safety interlock, etc. so the rotator automatically turns off when enclosure door is opened. One way to accomplish this is with a Morse enclosure with safety interlock.

For OSHA compliance, see OSHA subpart O.1910.212(a)(4) "Barrels, containers, and drums. Revolving drums, barrels, and containers shall be guarded by an enclosure which is interlocked with the drive mechanism, so that the barrel, drum, or container cannot revolve unless the guard enclosure is in place."

Power connections and motor controls must comply with applicable codes.

Drum Roller, Hydra Lift Drum Roller, Morse Drum Roller

Drum Roller, Morse Hydra Lift Drum Roller, Drum Rollers

Drum Mixer, 55 Gallon Drum Mixer, Drum Roller

Hydra Lift Drum Roller, Drum Rollers, Morse Drum Roller

A drum truck provides a simple means to deliver and remove your drum from the drum turner. Model 160 is shown here.

Load your upright drum onto drum turner with a below-hook drum lifter. Model 90 Verti-Karrier shown above.

Load upright drum onto drum turner at floor level

Power-Lift drum into position

for rolling on drum turner

Roll drum to mix contents

Guard Enclosure GEK-456-1-115

(Drum Roller sold separately)

Morse Part #	Hydra-Lift Drum Rollers	Group#	Weight	Class	Truck	Price
456-1-115	HYDRA-LIFT DRUM ROLLER, 5-20 RPM, 1-PHASE 115V MOTOR (OSHA REQUIRES ENCLOSURE)	51	625	70	T	$4,708.00
456-1-220-50	HYDRA-LIFT DRUM ROLLER, 4-16 RPM, 1-PHASE 220V 50Hz MOTOR. (OSHA REQUIRES ENCLOSURE)	51	616	70	T	$5,082.00
456-1-230	HYDRA-LIFT DRUM ROLLER, 5-20 RPM, 1-PHASE 230V MOTOR (OSHA REQUIRES ENCLOSURE)	51	616	70	T	$4,708.00
456-3-220-50	HYDRA-LIFT DRUM ROLLER, 4-16 RPM, 3-PHASE 220V 50Hz MOTOR. (OSHA REQUIRES ENCLOSURE)	51	616	70	T	$5,082.00
456-3-230	HYDRA-LIFT DRUM ROLLER, 5-20 RPM, 3-PHASE 230V MOTOR (OSHA REQUIRES ENCLOSURE)	51	616	70	T	$4,554.00
456-3-380-50	HYDRA-LIFT DRUM ROLLER, 4-16 RPM, 3-PHASE 380V 50Hz MOTOR. (OSHA REQUIRES ENCLOSURE)	51	616	70	T	$5,082.00
456-3-440-50	HYDRA-LIFT DRUM ROLLER, 4-16 RPM, 3-PHASE 440V 50Hz MOTOR. (OSHA REQUIRES ENCLOSURE)	51	616	70	T	$5,082.00
456-3-460	HYDRA-LIFT DRUM ROLLER, 5-20 RPM, 3-PHASE 460V MOTOR (OSHA REQUIRES ENCLOSURE)	51	616	70	T	$4,554.00
456-3-575	HYDRA-LIFT DRUM ROLLER, 5-20 RPM, 3-PHASE 575V MOTOR (OSHA REQUIRES ENCLOSURE)	51	616	70	T	$4,554.00
456-A	HYDRA-LIFT DRUM ROLLER, 5-20 RPM, AIR MOTOR (OSHA REQUIRES ENCLOSURE)	51	622	70	T	$4,554.00
456-E1-115	HYDRA-LIFT DRUM ROLLER, 5-20 RPM, EXPLOSION-PROOF 1-PHASE 115 MOTOR, MOTOR CONTROLS NOT WIRED. (OSHA REQUIRES ENCLOSURE)	51	616	70	T	$5,566.00
456-E1-220-50	HYDRA-LIFT DRUM ROLLER, 4-16 RPM, EXPLOSION-PROOF 1-PHASE 220V 50Hz MOTOR, MOTOR CONTROLS NOT WIRED. (OSHA REQUIRES ENCLOSURE)	51	616	70	T	$5,979.60
456-E1-230	HYDRA-LIFT DRUM ROLLER, 5-20 RPM, EXPLOSION-PROOF 1-PHASE 230V MOTOR, MOTOR CONTROLS NOT WIRED. (OSHA REQUIRES ENCLOSURE)	51	635	70	T	$5,566.00
456-E3-220-50	HYDRA-LIFT DRUM ROLLER, 4-16 RPM, EXPLOSION-PROOF 3-PHASE 220V 50Hz MOTOR, MOTOR CONTROLS NOT INCLUDED. (OSHA REQUIRES ENCLOSURE)	51	616	70	T	$5,979.60
456-E3-230	HYDRA-LIFT DRUM ROLLER, 5-20 RPM, EXPLOSION-PROOF 3-PHASE 230V MOTOR, MOTOR CONTROLS NOT WIRED. (OSHA REQUIRES ENCLOSURE)	51	616	70	T	$5,566.00
456-E3-380-50	HYDRA-LIFT DRUM ROLLER, 4-16 RPM, EXPLOSION-PROOF 3-PHASE 380V 50Hz MOTOR, MOTOR CONTROLS NOT WIRED. (OSHA REQUIRES ENCLOSURE)	51	616	70	T	$5,979.60
456-E3-440-50	HYDRA-LIFT DRUM ROLLER, 4-16 RPM, EXPLOSION-PROOF 3-PHASE 440V 50Hz MOTOR, MOTOR CONTROLS NOT WIRED. (OSHA REQUIRES ENCLOSURE)	51	616	70	T	$5,979.60
456-E3-460	HYDRA-LIFT DRUM ROLLER, 5-20 RPM, EXPLOSION-PROOF 460V MOTOR, MOTOR CONTROLS NOT WIRED. (OSHA REQUIRES ENCLOSURE)	51	626	70	T	$5,566.00
456-E3-575	HYDRA-LIFT DRUM ROLLER, 5-20 RPM, EXPLOSION-PROOF 3-PHASE 575V MOTOR, MOTOR CONTROLS NOT WIRED. (OSHA REQUIRES ENCLOSURE)	51	616	70	T	$5,566.00
