Free Material Handling Catalog
Copperloy
MOBILE YARD RAMPS

  Built strong for tough applications.
  Ideal for use when a dock is not available.

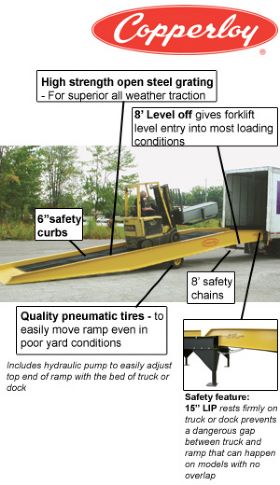

Durable ramps make loading and unloading trucks easy. Open steel grating ensures safe use in all weather conditions. Engineered for maximum efficiency. FOB Shipping Point.

  Includes hydraulic hand pump to easily adjust top end of ramp with the bed of truck or dock.

  High strength open steel grating - for superior all weather traction.

  Quality pneumatic tires - to easily move ramp even in poor yard conditions.

  8' Level off - gives forklift level entry into most leading conditions.

  Safety feature: 15" LIP rests firmly on truck or dock prevents a dangerous gap between truck and ramp that can happen on models with no overlap.

Product No. Cap. (lbs.)Size L x WRangeLevel OffWt. (lbs.)Price Ea.
HSS16-70-36PL8 Yard Ramp16,00036' x 70" 37-65" 8'6,100$10,450.00
HSS16-84-36PL8 Yard Ramp16,00036' x 84" 37-65" 8'6,900$11,520.00
HSS20-70-36PL8 Yard Ramp20,00036' x 70" 37-65" 8'6,200$11,385.00
HSS20-84-36PL8 Yard Ramp20,00036' x 84" 37-65" 8'7,000$12,545.00
HSS25-70-36PL8 Yard Ramp25,00036' x 70" 37-65" 8'6,300$12,060.00
HSS25-84-36PL8 Yard Ramp25,00036' x 84" 37-65" 8'7,100$13,420.00
HSS30-84-36PL8 Yard Ramp30,00036' x 84" 37-65" 8'8,300$16,450.00
MOBILE STEEL CONTAINER YARD RAMPS WITH STEEL GRATING
STEEL YARD RAMPS

  •   Yard Ramps provide flexibility with ground-level loading.
  •   Reduces material handling costs, expedite loading and utilize dock mobility.

Unit is easy to operate with a manual hand crank system with a service range of 45-62". Standard features include: maximum traction steel grating, safety locking chains, 9" steel wheels, 4" high safety curbs and rubber bumpers. Optional features include: pneumatic tires, hand pump hydraulic or DC lift, fork lift pickup slots, tow bar loop, tow bar hitch and handrails. Aluminum yard ramps also available. FOB Shipping Point.

Product No.Cap. (lbs.)Overall WidthUsable WidthLengthWt. (lbs.)Price Ea.
HYR-16-7230 16,000 72" 67" 30' 3780 $8,649.00
HYR-16-8430 16,000 84" 78" 30' 4095 $9,364.00
HYR-16-7236 16,000 72" 67" 36' 4725 $9,426.00
HYR-16-8436 16,000 84" 78" 36' 5040 $10,565.00
HYR-20-7330 20,000 73" 67" 30' 4515 $9,358.00
HYR-20-8530 20,000 85" 78" 30' 4830 $10,499.00
HYR-20-7336 20,000 73" 67" 36' 5565 $10,561.00
HYR-20-8536 20,000 85" 78" 36' 5985 $11,920.00
HYR-25-7336 25,000 73" 67" 36' 5880 $11,117.00
HYR-25-8536 25,000 85" 78" 36' 6300 $12,970.00
HYR-30-7336 30,000 73" 67" 36' 6300 $12,537.00
HYR-30-8536 30,000 85" 78" 36' 6730 $14,081.00


Offering Both:
​Copperloy Yard Ramps
​Bluff Mfg Yard Ramps
